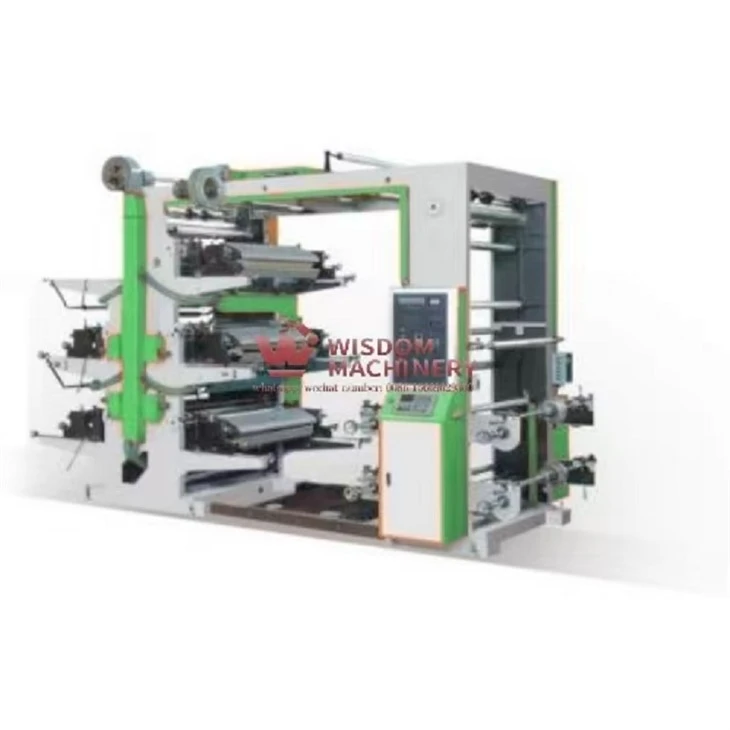

4 Xim Flexo Printing Tshuab
Khoom Paub meej
Lub tshuab luam ntawv 4 xim flexo yog lub tshuab luam ntawv siv los luam tawm ntawm cov ntaub ntawv hloov tau yooj yim xws li ntawv, yas, thiab txhuas ntawv ci. Nws siv cov txheej txheem luam ntawv flexographic uas cov ntawv luam tawm yog ua los ntawm cov roj hmab hloov tau yooj yim lossis cov ntaub ntawv photopolymer. Cov phaj yog mounted rau ntawm ib lub tog raj kheej thiab tus number case yog pauv los ntawm daim hlau mus rau lub substrate siv anilox rollers. Lub tshuab 4 xim muaj 4 lub tshuab luam ntawv, txhua tus muaj nws tus kheej cov phiaj xwm thiab cov tshuab luam ntawv, tso cai rau ntau xim luam ntawv hauv ib zaug. Cov tshuab no feem ntau yog siv rau hauv kev lag luam ntim rau kev luam ntawv ntawm lub hnab, hnab, thiab cov ntawv lo.
|
Tsis muaj |
Yam khoom |
4800 |
41000 |
41200 |
|
1 |
Max.Material Dav |
800MM IB |
1000MM |
120 AWM |
|
2 |
Max.Printing dav |
760mm ua |
960mm ua |
1 160 mm |
|
3 |
Max.Printing ceev |
60M / MIN |
60M / MIN |
60M / MIN |
|
4 |
Max. Txoj kab uas hla ntawm Yob Khoom |
1000MM |
1000MM |
1000MM |
|
5 |
Luam Length |
190-1000MM |
190-1000MM |
190-1000MM |
|
6 |
Qhov tseeb ntawm kev sau npe |
± 0.5MM |
± 0.5MM |
± 0.5MM |
|
7 |
Tag Nrho Lub Zog |
10 KW |
13 kWm |
18 kWm |
|
8 |
Qhov hnyav ntawm lub tshuab |
2500 KGS |
3000 KGS |
4000 KGS |
|
9 |
Zuag qhia tag nrho Dimension L * W * H |
4800 * 1800 * 2400 hli |
4800 * 1800 * 2400 hli |
4800 * 1800 * 2400 hli |
FAQ
Q: Yuav ua li cas txog kev teeb tsa thiab kev cob qhia thaum lub tshuab tuaj txog koj lub Hoobkas?
A: kev teeb tsa- engineer teem sijhawm tau lees paub 7 hnub ua ntej lub tshuab tuaj txog, 7-10 hnub rau kev teeb tsa nyob ntawm lub tshuab ua haujlwm nyuaj.
kev cob qhia- vim tus kab mob, tus neeg yuav khoom tsis tuaj yeem xa cov kws tshaj lij thiab nruab tshuab hauv cov neeg yuav khoom lub Hoobkas, tab sis yuav muab lub tshuab ua haujlwm manuel thiab tshuab disassemble video rau kev siv, yog tias tus neeg yuav khoom ntsib qee qhov teeb meem thaum lub sijhawm teeb tsa, yuav muaj engineer onlinem tab sis tus neeg yuav khoom yuav tsum rub tawm wechat thov rau ib tus account raws li lwm yam txawv teb chaws app tsis ua haujlwm hauv Suav teb
tus nqi ntawm kev teeb tsa thiab kev cob qhia: koj yuav tsum them rau peb tus engineer visa, air tickets, sim cardm tsev so, zaub mov, thiab lawv cov nyiaj hli USD100 ib hnub rau ib tus neeg.
