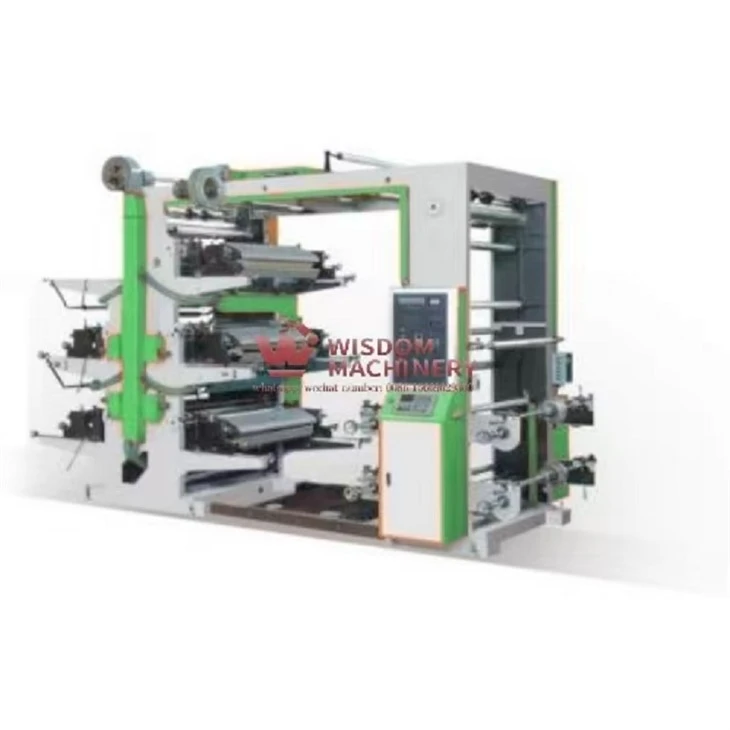

Me Flexo Printing Tshuab
Khoom Paub meej
Lub tshuab luam ntawv me me flexo yog hom luam ntawv xovxwm uas siv cov ntawv luam tawm yooj yim los tsim cov ntawv luam tawm zoo ntawm ntau yam ntaub ntawv xws li ntawv, yas, thiab ntaub. Hom tshuab luam ntawv no yog qhov zoo tagnrho rau cov lag luam me thiab nruab nrab vim nws yog compact, user-friendly, thiab pheej yig. Cov tshuab luam ntawv flexo me tuaj yeem siv rau cov ntawv luam tawm, cov khoom ntim khoom, thiab cov khoom txhawb nqa. Lawv tuaj yeem raug kho kom tau raws li cov kev xav tau luam ntawv tshwj xeeb, xws li siv cov inks tshwj xeeb, ntxiv cov xim ntxiv, lossis koom nrog cov teebmeem tshwj xeeb xws li glossy lossis matte tiav. Nrog rau qhov nce hauv kev thov rau cov kev daws teeb meem zoo thiab kev lag luam luam ntawv, cov tshuab luam ntawv flexo me tau ua nrov nrov ntawm cov lag luam ntawm txhua qhov ntau thiab tsawg.
|
Qauv |
2600 |
2800 |
21000 |
21200 |
|
Max. Muaj txiaj ntsig Printing Dav |
5 60mm |
7 60mm |
9 60mm |
11 60mm |
|
Max web dav |
600 hli |
800 hli |
1000 hli |
1200 hli |
|
Max luam ntawv ceev |
60m / min |
60m / min |
60m / min |
60m / min |
|
Max. Mechanical Speed |
70m / min |
70m / min |
70m / min |
70m / min |
|
Max. Txoj kab uas hla ntawm Roll Material |
φ450 hli |
φ450 hli |
φ450 hli |
φ450 hli |
|
Internal Diameter ntawm Roll Core |
f76mm ua |
f76mm ua |
f76mm ua |
f76mm ua |
|
Ntau yam ntawm Repeat Printing Length |
191-1200 hli |
191-1200 hli |
191-1200 hli |
191-1200 hli |
|
Qhov tseeb ntawm kev sau npe |
± 0.25 hli |
± 0.25 hli |
± 0.25 hli |
± 0.25 hli |
|
Phaj Thickness (Ob leeg sab nplaum suav nrog) |
2.38mm ib |
2.38mm ib |
2.38mm ib |
2.38mm ib |
|
Lub zog cua sov |
4 kwv |
6 kws |
8 kwv |
10 kwv |
|
Tag nrho lub zog: |
8 kwv |
10 kwv |
12 kwv |
12 kwv |
|
Qhov hnyav ntawm lub tshuab |
1800kg ib |
2000 kgs |
2200kgs ib |
2400kgs ib |
|
Zuag qhia tag nrho Dimension |
2.5m*1.7m*2.2m |
2.5m*1.9m*2.2m |
2.5m*2.1m*2.2m |
2.5m*2.3m*2.2m |
FAQ
Q1: Ua li cas txog koj lub lag luam loj?
A1: Peb cov khoom muag tau muag zoo hauv 30 lub xeev thiab muaj lub koob npe nrov hauv Suav teb, peb kuj tau them nyiaj rau kev tsim cov lag luam txawv teb chaws, xws li Europe, Russia, Southeast Asia, Middle thiab South America, Africa, thiab lwm lub teb chaws.
Q2: Koj lub Hoobkas ua li cas txog kev tswj xyuas zoo?
A2: Kev ua tau zoo yog lub hauv paus ntsiab lus tseem ceeb tshaj plaws. GREAT WALL cov neeg ib txwm muab qhov tseem ceeb rau kev tswj kom zoo txij thaum pib mus txog thaum kawg. Peb lub Hoobkas tau dhau ISO thiab CE daim ntawv pov thawj.
Q3: Yuav ua li cas txog warranty thiab cov engineers muaj nyob rau txawv teb chaws?
A3: Ib xyoos lav. Lub sijhawm no, yog tias lub tshuab muaj qee qhov teeb meem, peb cov engineers tuaj yeem mus txawv tebchaws los kho koj.
Q4: Yuav ua li cas txog qhov kev pab cuam tom qab muag?
A4: Ib qho koj tau yuav peb lub tshuab, koj tuaj yeem hu rau peb lossis email peb qhia peb cov teeb meem ntawm lub tshuab thiab cov lus nug txog lub tshuab. Peb yuav teb koj nrog 12 teev thiab pab koj daws qhov teeb meem.
