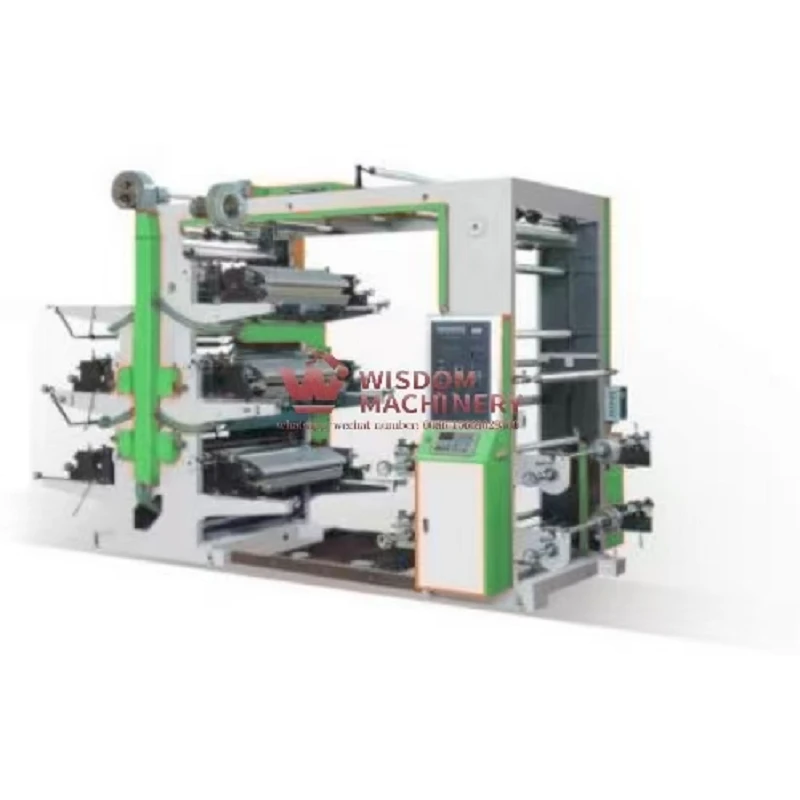

Flexo Gravure Printing tshuab

Flexogram tshuab luam ntawv yog lub siab ceev luam tawm cov xovxwm siv rau cov luam ntawv ntim cov khoom ntim, xws li cov ntawv yas yas, thiab txhuas ntawv txhuas.

Send Inquiry

Product Introduction

Khoom Paub meej

Flexogram tshuab luam ntawv yog lub siab ceev luam tawm cov xovxwm siv rau cov luam ntawv ntim cov khoom ntim, xws li cov ntawv yas yas, thiab txhuas ntawv txhuas. Nws yog hom ntawm cov tshuab luam ntawv rotary uas siv ib qho hloov ntaub ntawv photopolymer yooj ywm phaj ua lub tshuab luam ntawv. Lub tshuab muaj ob peb teev cov ntawv luam, txhua lub nruab nrog nws tus kheej cov khoom siv ua pa, tus kws kho mob hniav thiab lub tog raj kheej pom.

Lub tshuab luam ntawv flexogravure tau paub txog nws cov tshuab luam ntawv zoo tawm thiab versatility, ua rau nws haum rau ntau yam ntawm cov haujlwm luam tawm. Nws tuaj yeem luam tawm txog yim xim, thiab luam ntawv ceev tuaj yeem los ntawm {1}}} meters ib feeb, nyob ntawm tus qauv tsim thiab nyuaj ntawm cov ntawv luam.

Lub tshuab ua haujlwm los ntawm kev hloov tus mem kua los ntawm cov kav dej muab tso rau hauv lub phaj luam ntawv, uas yog tom qab ntawd pauv mus rau cov khoom siv substrate siv lub tog raj kheej sab. Tus kws kho mob hniav kom ntseeg tau tias lub tshuab luam ntawv yog tusyees coed nrog number case, yog li ua cov ntawv luam zoo.

Sib nrug ntawm cov khoom ntim yooj ywm, lub thawv luam ntawv kuj tseem siv rau cov luam ntawv, corrugated ntim, hnab ntawv, thiab phab ntsa. Nws yog dav siv hauv cov zaub mov thiab dej haus kev lag luam, nrog rau hauv cov tshuaj, kom zoo nkauj, thiab cov khoom lag luam kev lag luam.

Tus qauv	6800
Max. Cov Khoom Siv Cov Khoom Siv Dav	800mm
Max. Luam Ntawv Dav	760mm
Kev Sau Ntawv Ntev Ntau Yam	230-800 hli
Kev luam ntawv ceev	5-100 m \/ min
Sau Npe Precision	Tsawg dua los yog sib npaug ± 0. 2 hli
Thickness ntawm phaj (suav nrog cov tuab ntawm ob sab kua nplaum)	2.28+0.38

#Cov ib feem
1.Main lub cev muaj zog tswj
2. Lub cev muaj zog cais

#Drying ib feem
Txais nrog cua sov sab nraud, ntsuas kub, tswj hluav taws xob tam sim no, centrifugal blower coj cua

#Printing ib feem
1.Pneat kev nqa thiab qis luam ntawv phaj thooj voos kheej kheej kheej nws pib nqa phaj kheej kheej thaum lub tshuab nres. Tom qab uas tuaj yeem khiav number case tau txiav. 2.Thaum lub tshuab qhib, nws yuav ua rau lub siab kom pib lub pib qis phaj luam ntawv lub tog raj kheej.
2. Inking nrog Ceramic Anilox Chambered Kws Kho Hniav, Ink Twj Tso Kua Dej
3. Cov txheej txheem precision planetary iav cub 360 degree ncig kev sau npe ntev
4. ± 20mm transverse sau npe
5. Kho Cov Lus Qhia Rau Cov Xovxwm thiab luam ntawv siab nias los ntawm phau ntawv
